Overview
Trane’s air-cooled chillers and heat pumps are designed to balance capacity, value sustainability, efficiency, and acoustics.
Achieve your sustainability goals with advanced technologies, superior noise control, and unmatched reliability supported by over 3,000 Trane-trained technicians.
-
Leading Sustainable HVAC Solutions
Trane’s advanced technologies ensure efficient, eco-friendly heating and cooling. Achieve sustainability goals without compromising performance or budget.
-
Maximize Efficiency with Advanced HVAC Solutions
Trane air-cooled chillers and heat pumps offer top-tier energy efficiency with advanced compressors, heat recovery, and thermal storage options.
-
Superior Noise Control for Optimal Performance
Trane air-cooled chillers and heat pumps offer high efficiency with low noise, ensuring compliance and enhancing indoor environmental quality.
-
Unmatched Reliability and Support
Trane air-cooled chillers and heat pumps offer proven dependability with rapid support from over 3,000 Trane-trained technicians across North America.
-
Next-Gen Cooling for Data Centers
Trane's air-cooled chillers offer higher capacity and efficiency, reducing electrical demand while delivering reliable operation during higher ambient temperatures.
Air-Cooled Chiller Offerings
-
Model CGAM
The CGAM air-cooled scroll chiller offers the perfect combination of flexibility, efficiency and low noise. Available in sizes ranging from 20 to 130 tons with a compact footprint. -
Model ACS
Efficient, reliable, and quiet cooling with Trane ACS 140-230 ton chillers. Ideal for sustainable performance. -
Ascend™ Air-to-Water Heat Pumps
Model ACX
Trane ACX air-to-water heat pumps offer efficient heating and cooling for commercial needs, with capacities from 80-230T and temps down to -15°F.
-
Model ACR
Trane® Ascend™ ACR with integrated free cooling, engineered for high-density environments. Exceptional efficiency and rapid restart. -
Model RTAF
Discover the Trane® Sintesis™ Air-Cooled Chiller, surpassing ASHRAE 90.1-2016 standards with low-GWP refrigerant for efficient, quiet, and reliable cooling. -
Air-Cooled Magnetic Bearing Chiller
Model TCA
Maximize cooling efficiency and reduce costs with Trane’s Air-Cooled Magnetic Bearing Chiller. Ideal for data centers, it offers advanced control and sustainability. Request a quote today!
| Solution | Applications | Capacity (Tons) | Operating Map | Compressor | Low-GWP Refrigerant |
| Model CGAM | Comfort Cooling | 20-130T | Cooling: 0 °F to 65 °F -20 °F to 125 °F ambient Heat recovery up to 140 °F | Scroll with Variable Volume Ratio | R-454B |
| Model ACS | Comfort Cooling | 140-230T | Cooling: 0 °F to 68 °F -20 °F to 130 °F ambient Heat recovery up to 140 °F | Scroll with Intermediate Discharge Valves | R-454B |
| Model ACR | Comfort Cooling Mission Critical | 150-500T | Cooling: 10 °F to 68 °F -20 °F to 145 °F ambient | Helical Rotary Screw | R-513A or R-1234ze |
| Model ACX | Comfort Cooling | 80-230T | Cooling: 20 °F to 65 °F -4 °F to 125 °F ambient Heating: 55 °F to 145 °F Max leaving temp at min ambient: • 120 °F at -15 °F (80-120T) • 90 °F at 0F (140-230T) | Scroll with Variable Volume Ratio Vapor Injection Scroll | R-454B |
| Model RTAF | Comfort Cooling | 115-500T | Cooling: 0 °F to 68 °F -20 °F to 130 °F ambient Heat recovery up to 140 °F | Helical Rotary Screw | R-513A |
| Model TCAB | Comfort Cooling Mission Critical | 200-850T | Cooling: 38 °F to 86 °F | Oil-free Magnetic Bearing Centrifugal | R-515B or R-1234ze |
High-Performance System Design Options
At Trane, we understand the comprehensive, system-wide aspects essential for the effective thermal management of your building, starting with your chiller. Trust our expert guidance to tackle even the most complex challenges. Enhance your results with integrated cutting-edge technology, precise controls, pre-engineered tools, and optional services.

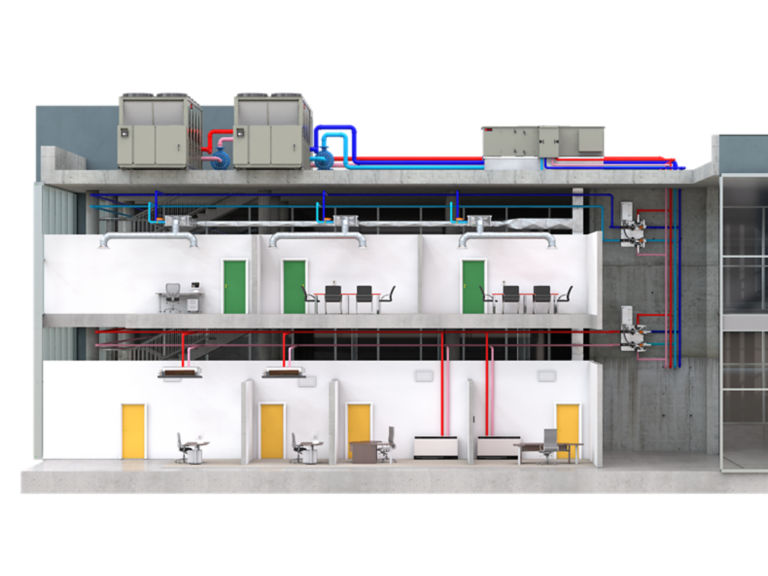

Comprehensive Heat Pump Chiller Systems
Thermal Battery Energy Storage Systems
Discover More of What’s Possible with Trane
-
HVAC Design and Analysis Tools
Backed by Trane's long history of HVAC system design and software simulation knowledge, our cutting-edge HVAC tools and calculators answer your challenges and help create a more sustainable world. -
Enhance your buildings performance with Trane’s innovative building control solutions, designed for both modern and previous systems to improve comfort and reduce energy consumption. -
Advance your mission with Trane as your dedicated partner in creating lasting improvements for your people, facilities, and future.
Connect with an expert.
Still not sure which solution is right for you? Connect with a Trane expert.
Prefer to chat with someone at your local Trane office?
